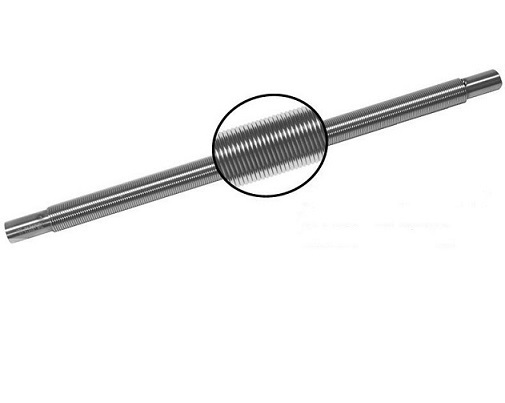

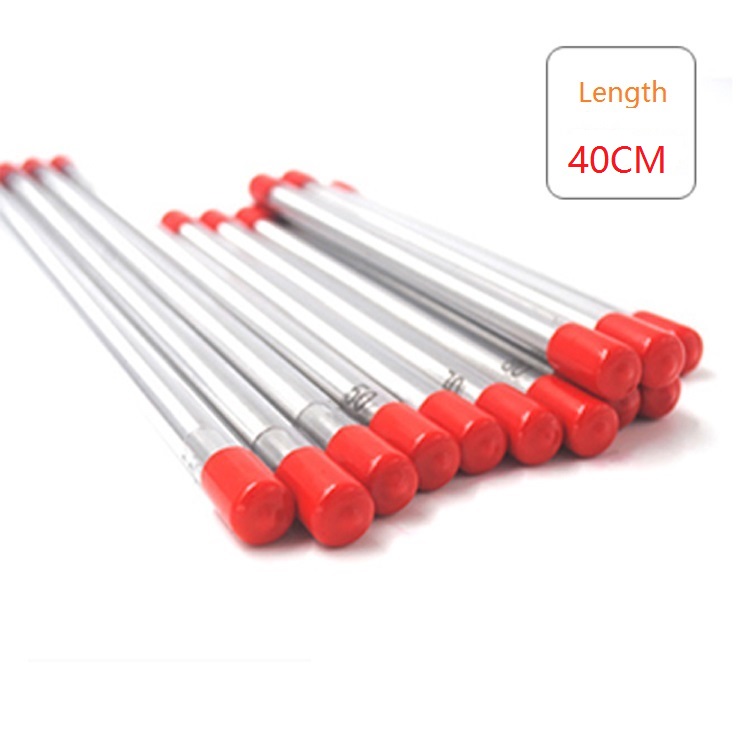

| Wire bar coaters L，300mm film width
Each bar has a 10 mm diameter with a 300 mm film width.
There is 50 mm space on both ends to grip the bar.
An adapter is also available to attache the bars to the Cat.No.2540 Automatic Film Applicator.
Ordering & Technical Specifications
| Cat.No. |
Film Thickness |
Film Width |
Bar Length |
| 25311 |
12 μm |
300 mm |
400 mm |
| 25312 |
15 μm |
300 mm |
400 mm |
| 25313 |
20 μm |
300 mm |
400 mm |
| 25314 |
25 μm |
300 mm |
400 mm |
| 25315 |
30 μm |
300 mm |
400 mm |
| 25316 |
40 μm |
300 mm |
400 mm |
| 25317 |
50 μm |
300 mm |
400 mm |
| 25318 |
60 μm |
300 mm |
400 mm |
| 25319 |
80 μm |
300 mm |
400 mm |
| 253110 |
100 μm |
300 mm |
400 mm |
| 253111 |
120 μm |
300 mm |
400 mm |
| 253112 |
150 μm |
300 mm |
400 mm |
| 253113 |
200 μm |
300 mm |
400 mm |
|
