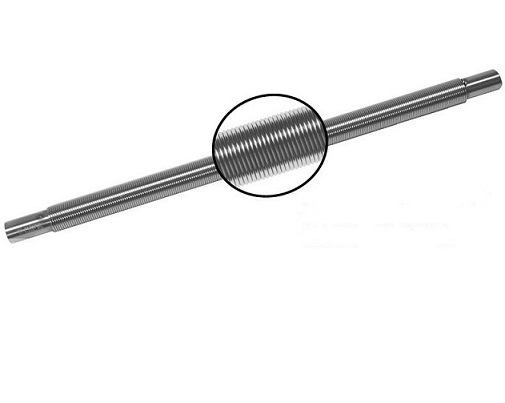

Wire bar coaters，200mm film width

Each bar has a 12 mm diameter with a 200 mm film width.

There is 20 mm space on both ends to grip the bar.

The bar can be attached to a holder to secure the bar during a drawdown.

An adapter is also available to attache the bars to the Cat.No.2540 Automatic Film Applicator.

Ordering & Technical Specifications

Cat.No. Film Thickness Film Width Bar Length
25301 6 μm 200 mm 240 mm
25302 8 μm 200 mm 240 mm
25303 10 μm 200 mm 240 mm
25104 12 μm 200 mm 240 mm
25105 15 μm 200 mm 240 mm
25106 20 μm 200 mm 240 mm
25107 25 μm 200 mm 240 mm
25108 30 μm 200 mm 240 mm
25109 40 μm 200 mm 240 mm
251010 50 μm 200 mm 240 mm
251011 60 μm 200 mm 240 mm
251012 80 μm 200 mm 240 mm
251013 100 μm 200 mm 240 mm
251014 120 μm 200 mm 240 mm
251015 150 μm 200 mm 240 mm
251016 200 μm 200 mm 240 mm
