Introduction:

JR oven loggermaster is the latest generation of oven temperature logger for robust comprehensive,intelligent and easy-to-use, which is used to measure and store the temperature profiles of both the sample and the oven during the cure process. The record data can be downloaded to the loggermaster software for a comprehensive evaluation of the oven conditions.

Technical Specifications:

◆Range: 0℃-1200℃
◆Accuracy:±0.3℃
◆Resolution: 0.1℃
◆Probe type:K type
◆Channel:6
◆Operation temperature:0-60℃
◆Interval:from1second to 1hour
◆Interface: USB
◆Batteries: 3×1.5AA type
◆Battery life: 1200 hours continuous use or 10000 hours stand-by
◆Size :85×105×30 mm

Feature:

◆Measures up to 6 channels  in one time
◆Long battery life
◆Large screen for numerical or graphical display  of data
◆USB interface provides easy data transfer for evaluation
◆High quality thermocouple type K probes
◆Measure temperature both in horizontal and  vertical as the component is passed through the cure process
◆Start and stop logging at a pre-set temperature
◆Memory stores up to 260,000 readings

wKiAiVZJQqfbqhhcAAEhjtZkgIw315

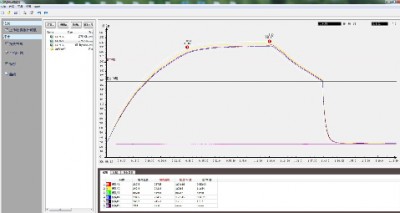

Flexible evaluation of data:

◆Quick display – the logger display shows the maximum temperature and data percentage or graphic representation for each probe.
◆Extensive analysis – download the data to PC, comprehensive calculations and full customized reports are easily got as each system is supplied with the powerful analysis software.

Thermal Insulation Systems:

◆All BEVS2301 recorder is equipped with a high quality thermal insulation system.
◆The insulation box is equipped with advanced stainless steel shell,which can be customized according to the demand for other purposes.
◆Advanced heat absorber

Probe type:

A wide range of K-Type temperature probes is available with 1.5m , 3m or 6 m  cable length.

Order Information of Probe:

Order No. Cable length(m) Cable type Application Probe type Max.T.(℃)
 PL8001/02/03  1.5/3.0/6.0   teflon  air  clamp  300
 PL8004/05/06  1.5/3.0/6.0   teflon  air  magnetic  300
 PL8007/08/09  1.5/3.0/6.0   teflon  surface  clamp  300
 PL8010/11/12  1.5/3.0/6.0   teflon  surface  magnetic  300
 PL8013/14/15  1.5/3.0/6.0   teflon  universal  ring Ø6mm  300
 PL8016/17/18  1.5/3.0/6.0   teflon  universal  wire  300
 PL8019/20  1.5/3.0   ss braided lead  surface  magnetic  480
 PL8021/22  1.5/3.0   ss braided lead  surface  clamp  480
 PL8023/24  1.5/3.0   ss braided lead  universal  ring Ø6mm  480
 PL8025/26/27  1.5/3.0 /6.0   ss braided lead  air  clamp  480
 PL8028/29/30  1.5/3.0/6.0   Inconel bendable HT  universal  ring Ø6mm  1000

Order Information:

JR 2301    Oven Loggermaster
