Introduction:
BEVS Fineness of Grind Gauge is manufactured according to GB/T1724 and ISO1524 standard.
Application:
Paint, plastic,pigment, printing ink, paper, ceramic,pharmaceutical, food and many other industries.
Technical Specification:
Material: Stainless steel
Order Information:
| Item | Order No | Effective Groove Size（L×W)(mm) | Measurement Range(µm) | Dimension(mm) | Division Value | Unit | Number of Grooves |
| Single-Channel Grind Gauge | 1903/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | H & μm | 1 |
| 1903/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | H & μm | 1 | |
| 1903/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | H & μm | 1 | |
| Double-Channel Grind Gauge |
1908/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | H & μm | 2 |
| 1908/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | H & μm | 2 | |
| 1908/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | H & μm | 2 |
Order Information of Accessories:

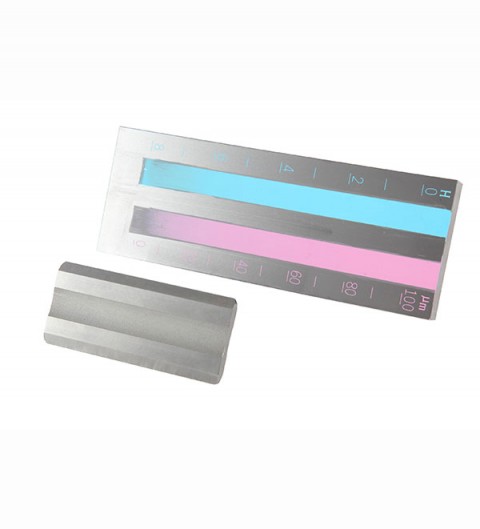

BEVS1907 Scraper For Fineness of Grind Gauge
